Channel drains slimline line drawing
Yeti Slimline Channel drains
Yeti Stainless Slimline Drains Specifications

Channel Drains Slimline

Yeti Slimline is designed for superior drainage in depth limited installation areas. Our slimline range can be manufactured with a flat base, v base or cross break fall for shorter runs. Yeti slimline can be custom made with seal welded end caps and outlets in positions. We take the time to understand your project and send through a detailed product drawing prior to commencement with manufacturing. For longer runs we supply our slimline products as modular kits all made to length for rapid installation on site. Yeti Slimline is designed and manufactured for seemless installation and superior finish and drainage results.

Type of System

Modular or Custom

Class Loads

A, B, C, D
Usage Types

Outdoors

Indoors

Liquid Type

Traffic Type

Balcony, Building Entrance, Driveway, Industrial, Landscaping, Poolside, Streetscapes
Bathroom, Food Processing Area, Garage, Indoor Pool, Kitchen, Shower, Public spaces
Rainwater, Stormwater, Food Waste, Other Waste, Shower, Pool Water
Light Pedestrian, Heavy Vehicle, Light Pedestrian Traffic, Heavy Vehicle Traffic, Medium Vehicle Traffic
Usage Types

Outdoors

Balcony, Building Entrance, Driveway, Industrial, Landscaping, Poolside, Streetscapes

Indoors

Bathroom, Food Processing Area, Garage, Indoor Pool, Kitchen, Shower, Public spaces

Liquid Type

Rainwater, Stormwater, Food Waste, Other Waste, Shower, Pool Water

Traffic Type

Light Pedestrian, Heavy Vehicle, Light Pedestrian Traffic, Heavy Vehicle Traffic, Medium Vehicle Traffic
Channel Base Options
V Base
Flat Base

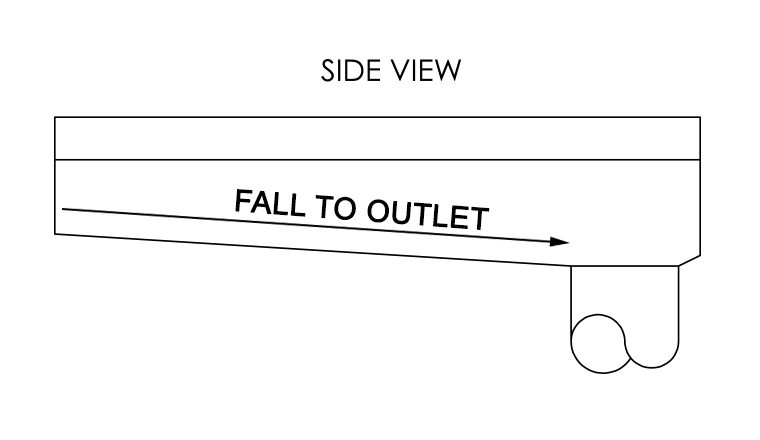

Fall to Outlet (up to 3m)
Grate Options
Yeti tile insert stainless steel grates LO
Yeti Tile Insert
Yeti SQB Heelguard stainless steel grates LO
Yeti Square Bar Heelguard
Yeti 5x10 Hiflow stainless steel grates LO
Yeti 5x10 Heelguard
Yeti 5x5 Heelguard stainless steel grates LO
Yeti 5x5 Heelguard
Yeti 5x5 Heelgrip stainless steel grates LO
Yeti 5x5 Heelgrip
Yeti 3x5 heelguard stainless steel grates LO
Yeti 3x5 Heelguard
Yeti 3x3 Heelguard stainless steel grates LO
Yeti 3x3 Heelguard
Yeti Slot top Drain
Features and Options
Yeti Slimline Concrete Tie
Concrete Ties

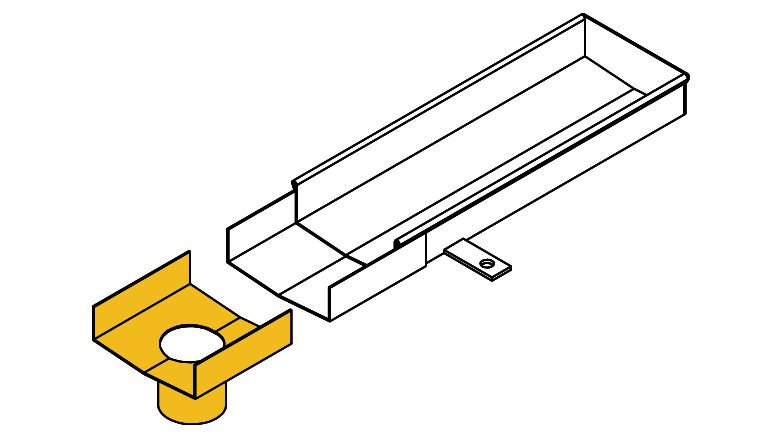

Yeti Slimline Outlet
Outlet Fixed or Movable

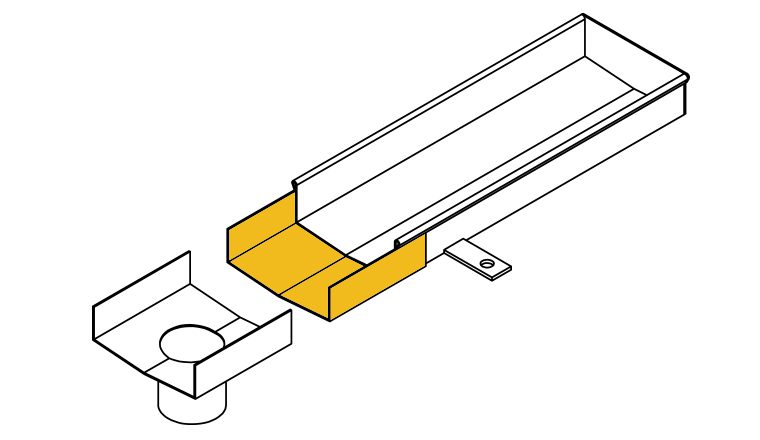

Yeti Slimline Joiner
Channel Joiner

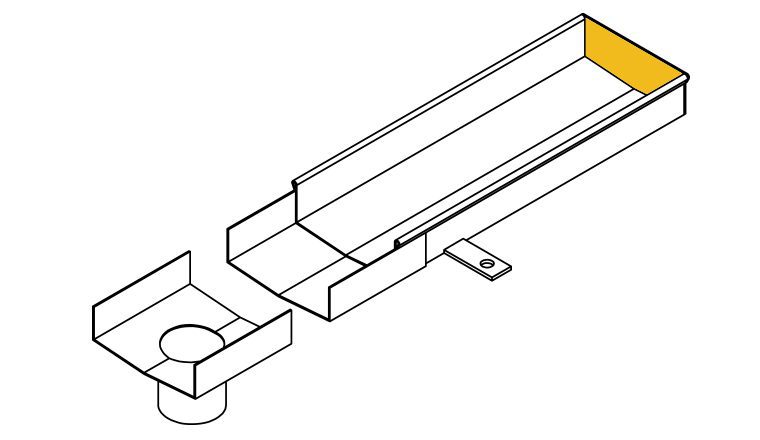

Yeti Slimline End Cap
End Cap Fixed or Movable
Channel Corners
