Airflow grating inset line drawing

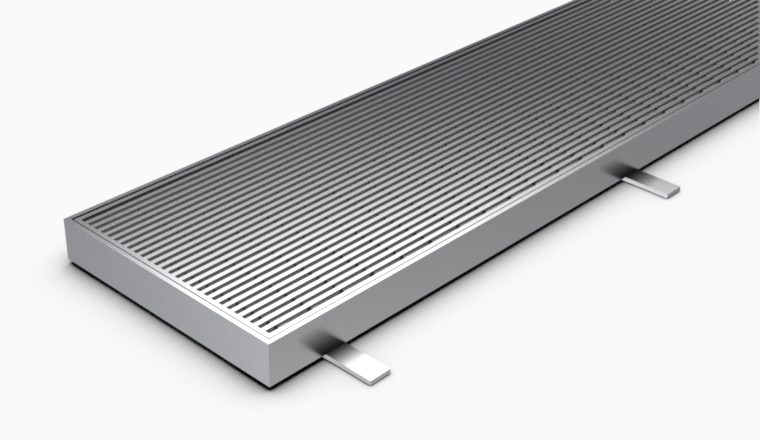

Yeti Airflow Inset Grating
Yeti Airflow Inset

Airflow Grating Inset

Yeti Airflow inset grates are a complete trench frame and grate system designed for airflow in premium air conditioning applications. Our heelguard grates are slip resistant and safe for all types of traffic whilst providing spacing for specified airflow. Grates are fully and easily removable from the frames and are available with optional bolt down points.

Type of System

Custom

Class Loads

A, B, C, D
Usage Types

Outdoors

Indoors

Liquid Type

Traffic Type

Air Conditioning
Public spaces
Air flow only
Light Pedestrian, Heavy Vehicle, Light Pedestrian Traffic, Heavy Vehicle Traffic, Medium Vehicle Traffic
Usage Types

Outdoors

Air Conditioning

Indoors

Public spaces

Liquid Type

Air flow only

Traffic Type

Light Pedestrian, Heavy Vehicle, Light Pedestrian Traffic, Heavy Vehicle Traffic, Medium Vehicle Traffic
Yeti SQB Heelguard stainless steel grates LO
Square Bar Heelguard (45% AF)
Yeti 5x5 Heelgrip stainless steel grates LO
5mm Wire With 5mm Gap Heelgrip (45% AF)
Yeti 5x5 Heelguard stainless steel grates LO
5mm Wire With 5mm Gap Heelguard (45% AF)
Yeti 3x5 heelguard stainless steel grates LO
3mm Wire With 5mm Gap Heelguard (60% AF)
Yeti 3x3 Heelguard stainless steel grates LO
3mm Wire With 3mm Gap Heelguard (45% AF)
Yeti 5x10 Hiflow stainless steel grates LO
5mm Wire With 10mm Gap (60% AF)
Yeti Ladder grate stainless steel grates LO
Ladder Grate (80% AF)
